Setting a Double Gate So the Drop Rod Lands Every Time

Stand at the center post of a double gate, lift the drop rod clear of its hole, and watch where the tip wants to fall. The breakdown sitting on iron gates austin tx bad dog tavern lists the causes in order, and in Austin, TX the first one is almost always the ground. The pinned leaf is the one that drifts, because nobody swings it often enough to notice.

What the drop rod and cane bolt actually do

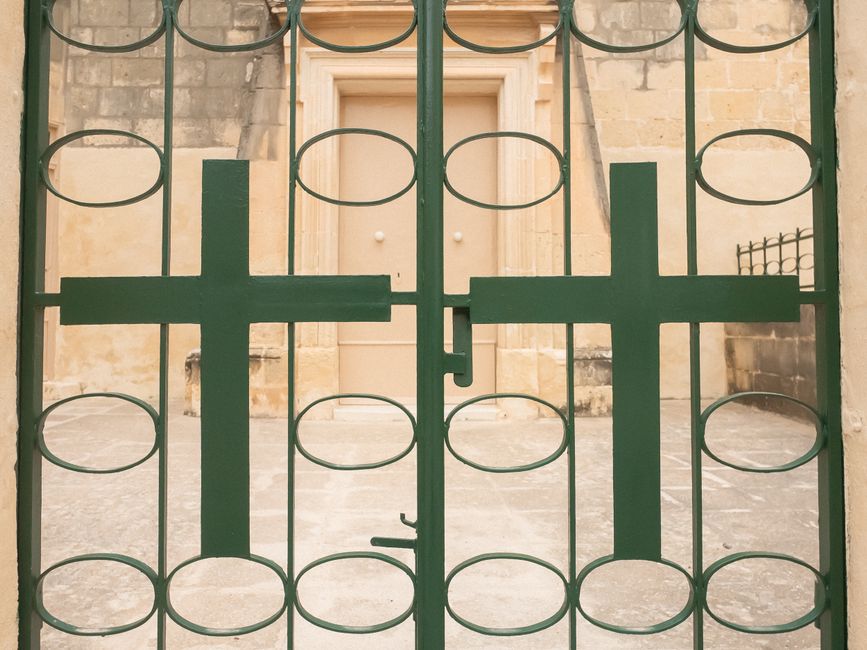

The cane bolt is a steel rod that slides through guides welded to the inactive leaf and drops into a sleeve set in the concrete or a hole drilled in the pavement. The drop rod does the same job in a heavier form. Both hold the second leaf against wind. If the rod lands crooked, it bears on one edge of the sleeve, and the leaf rocks a quarter inch with every gust.

Why the inactive leaf walks out of line

Travis County sits across the Balcones Fault, and the soil changes from black clay on the east side to thin rock over limestone toward the Texas Hill Country. Clay swells after rain and shrinks in a dry summer, so a gate post set in it moves a little in both directions every year.

Checking the strike before touching the hinges

Close both leaves and measure the gap at the center, top and bottom. A gap wider at the top than the bottom points to a leaning post or a bent hinge pin, not a bad bolt. Then sight down the rod: the sleeve should sit directly under it with a finger of clearance all round.

Fixes that hold up

A sleeve that has shifted can be cut out and reset in fresh concrete, deep enough to sit below the shrink and swell zone. Rods in galvanized steel last longer outdoors than bare ones, and a rod with a powder coat finish needs the coat cleared from the sliding surface or it binds.

Hardware that wears

The guides on a cane bolt wear into an oval over a few years, and the rod starts to wobble inside them. Replace the guides when the rod moves sideways by hand. If the gate carries an operator, the second leaf usually still locks with a manual drop rod, so the actuator is never asked to hold the pinned side. Wrought iron frames on older streets near Hyde Park and the blocks above Zilker Park often carry hand forged bolts, which can be rebuilt rather than replaced.

A quick routine

Lift the rod and drop it five times in a row. It should land with a clean click every time and without a hand guiding it. Spray the rod with a dry lubricant, never grease, because grease collects grit from dry Austin summers and turns into paste.
